RGS - 48” x 72” Slab Mill

If your projects vary from cutting boards to moderate sized dining room tables, take a look at this Jack-Of-All-Trades size from the TrueTrac Router Gantry System!

With this kit, you can rest assured you're covered for virtually any moderately sized project right off the starting line.
  • Working Area:
    • Material Width: 48 in.
    • Material Length: 72 in.
    • Material Thickness: 2-1/4 in.*
  • Expandable in both length and width:
    • Easily add either 27-1/2 or 55 in. extension kits
This kit allows the functionality of the 22x48, 22x96, 48x48, and 48x72 capacity units depending on how you organize the guide rails.

With the optional Threaded Cross Feed upgrade, you can achieve unparalleled precision in your cuts, making even the most challenging projects a breeze right out of the box.
$ 974.99 $ 934.99 USD Save $ 40.00
/
Style
  • 90-Day Money Back Guarantee 90-Day Money Back Guarantee
  • Lifetime Warranty Lifetime Warranty
  • Unlimited Phone & Email Support Unlimited Phone & Email Support
  • Clean, Consistent Cuts Every Time Clean, Consistent Cuts Every Time
  • Precision Tools, American Made Precision Tools, American Made
Router Gantry System 48” x 72” Slab Mill
Router Gantry System 48” x 72” Slab Mill Explainer Video
Router Adapter Plate for RGS 48” x 72” Slab Mill
Router Plate Fixed Stops
Router Plater Over Travel
Router Plate Over Travel Variation
Long Runner Details
Long Runner Details Close Up
Acme Nuts Close Up on Router Gantry System 48” x 72” Slab Mill
Acme Nuts Close Up Router Gantry System 48” x 72” Slab Mill
Router Gantry System Compatibility List

RGS - 48” x 72” Slab Mill

$ 974.99 $ 934.99 Save $ 40.00
/
$ 974.99 $ 934.99 USD Save $ 40.00
/

Better Together

View all products

Working Area:

  • Material Width: 48 in.
  • Material Length: 72 in.
  • Material Thickness: 2-1/4 in.

This assumes the bottom long axis rails are on the same planar surface as the material being processed.

To handle thicker materials, simply shim under the long axis rails and lift the RGS unit relative to the main support surface.

Outer Physical Dimensions:

  • Variable, depending on configuration used. Dimensions given here are for the standard 48x72 capacity configuration.
  • Unit Width: 57 in.
  • Unit Length: 84-1/2 in.

Total Travel (Spindle Center):

  • Width Travel: 49-1/2 in.
  • Length Travel: 75 in.

Unit Weight:

  • 40 pounds

Materials Used:

  • 6063 custom extruded aluminum, satin hard anodize finish
  • Solid Acetal Resin, CNC machined sliding components and end caps
  • 6061-T6 1/4-inch thick aluminum base plate, predrilled for 28 different models of router

The following items make up the TrueTrac 48-inch x 48-inch capacity router sled:

  • Two (2) 27-1/2 inch length RGS guide rails
  • Four (4) 55 inch length RGS guide rails
  • Four (4) Self-Aligning Dovetail Connectors, with 1/4-20 x 5/16 cup point set screws installed
  • Eight (8) Bearing End Caps, installed on rails with 10-24 Type F Machine Screws
  • Two (2) Short Linear Slides (Short Runners) with bubble levels installed
  • Two (2) Long Linear Slides (Long Runners)
  • Two (2) Drop Downs
  • One (1) Router Base Plate, pre-drilled for listed routers (see compatibility below)
  • Fourteen (14) 10-24 threaded, 1/4 inch diameter, 1/4 inch length Shoulder Bolts
  • Six (6) 8-32 x 1/2 L flat head Phillips drive machine screws
  • One (1) 1/8 inch L-shaped hex wrench
  • Two (2) Hand Grip Knobs

If the Threaded Cross Feed version is selected, one of the 55-inch extrusions above will have the 55-inch Threaded Rod Kit installed.

Additionally, two (2) knurled thumb screws will be included with the standard hardware packet as well as one (1) hand crank to attach to the threaded rod.

The Threaded Cross Feed units can be moved manually without the rod or hand crank by simply removing the two thumb screws and moving the Router Base Assembly by hand.

Mounting Hole Patterns Pre-Drilled For The Following Routers:

  • Bosch 1617, 1618, 1619, 1619-EVS (fixed base only)
  • DeWalt 616, 618, 625
  • Festool OF1400, OF2200
  • Hitachi M12VC
  • Makita 1100 (Makita RP1800 & RP2301 require blank base plate)
  • Milwaukee 5616, 5624, 5625-20
  • Bora PM-6250 Fixed Base
  • Porter Cable 690, 890, 7529, 97529, 8529
  • Porter Cable 7518, 7519, 7538, 7539
  • Ridgid 2930
  • Triton TRA001, MOF001, TFBR001

Blank plate with one 1/4-inch hole drilled on center available upon request.

Router plates are fully CNC machined 1/4-inch thick 6061 aluminum.

This product ships via UPS and is not deliverable to a PO Box due to size and weight.

Currently we are shipping within 2-3 business days or faster for all RGS units.

We are located in Ohio. Anything East of the Rocky Mountains is generally 3 days or less transit time, with the upper New England area and the west coast averaging 4-5 days.

We can ship internationally via UPS or DHL and frequently ship to Canada.

Product Reviews

What our customers say

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
W
Wesley Williams
Outstanding Results

The mill saves time and produces excellent results at an affordable price.

A
Andy Bouchonville

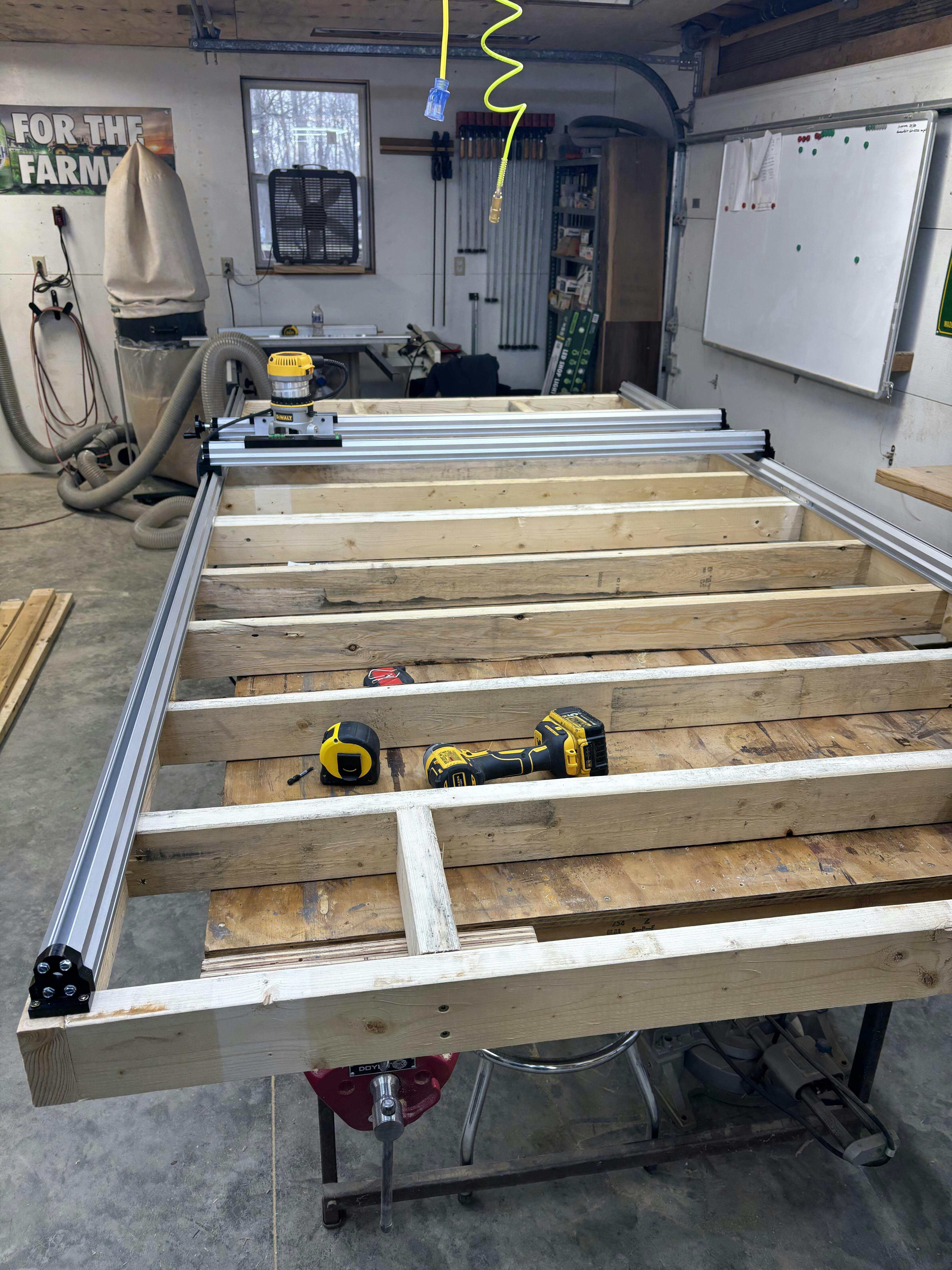

Gantry system with dust collection
